Leviton - Category 6 U/UTP EuroClass Cca Cable — C6U‑Cca‑Rlx‑305YW (Yellow)

Leviton – Category 6 U/UTP EuroClass Cca Cable — C6U‑Cca‑Rlx‑305YW (Yellow)

23 AWG solid Cat 6 U/UTP cable with central separator and HFFR‑LS EuroClass Cca jacket, 250 MHz, 305 m reel, nominal Ø 6.15 mm, manufactured in the United Kingdom.

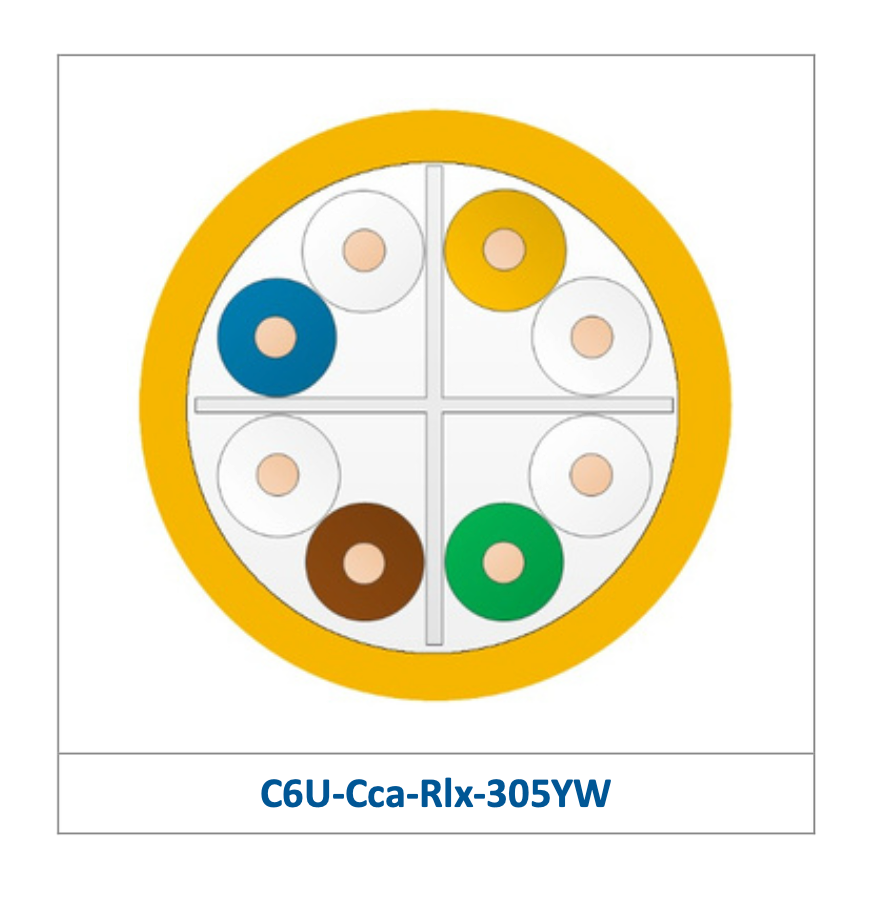

Leviton Category 6 U/UTP EuroClass Cca cable is a 4‑pair, 23 AWG solid annealed copper cable engineered for Class E (Cat 6) systems to 250 MHz. The construction includes a central separator for improved pair isolation and a Halogen Free Flame Retardant Low‑Smoke jacket that meets CPR EuroClass Cca s1a d1 a1. Supplied on a 305 m reel in yellow (C6U‑Cca‑Rlx‑305YW), the cable supports Gigabit Ethernet, PoE, voice, and broadband video and is produced in a carbon‑neutral UK facility.

Key Specifications

Part number: C6U‑Cca‑Rlx‑305YW
Conductor: 23 AWG solid annealed copper
Pairs: 4 U/UTP with central separator
Frequency rating: 250 MHz (Class E)
Nominal OD: 6.15 mm
Nominal weight: 44.6 kg/km
Field test NVP: 0.69
Typical conductor loop resistance: 16 Ω/100 m
Typical delay skew: 25 ns/100 m @ 100 MHz
Installation temperature: 0 °C to +50 °C
Operating temperature: −20 °C to +75 °C
Max tensile load (installation): 10 kg
Min bend radius: 8 × OD (installation); 4 × OD (operation)

Standards and Compliance

Electrical standards: ISO/IEC 11801 Class E; IEC 61156‑5; EN 50173‑1; ANSI/TIA‑568.2‑D.
Fire and smoke: EN 13501‑6 EuroClass Cca s1a d1 a1; IEC 60332‑1‑2; IEC 60332‑3‑22; IEC 61034; IEC 60754.
Power delivery: IEEE 802.3 PoE Types 1–4; Power over HDBaseT PoH; Cisco UPOE and UPoE+.

Packaging Origin and Warranty

Packaging: 305 m reel/box; box size 435 × 265 × 405 mm; gross weight ~14.4 kg.
Country of origin: United Kingdom.
Warranty: Eligible for Leviton Limited 25‑Year System Warranty with qualifying Leviton copper connectivity and certified installation.

Product Specification

Features and Benefits

Central separator for improved internal crosstalk performance.
HFFR‑LS jacket enabling CPR EuroClass Cca s1a d1 a1 compliance for low smoke and low acid gas.
Supports Gigabit Ethernet and Class E applications to 250 MHz.
PoE capable including IEEE 802.3bt Types 1–4 and vendor extended PoE (Cisco UPOE / UPoE+).
Carbon neutral UK manufacture; reel and box packaging are 100% recyclable.
Eligible for Leviton Limited 25‑Year System Warranty when used with qualifying Leviton connectivity and certified installers.
