Leviton - French-Style Wallplate Inserts (45mm x 45mm)

Leviton – French-Style Wallplate Inserts (45mm x 45mm)

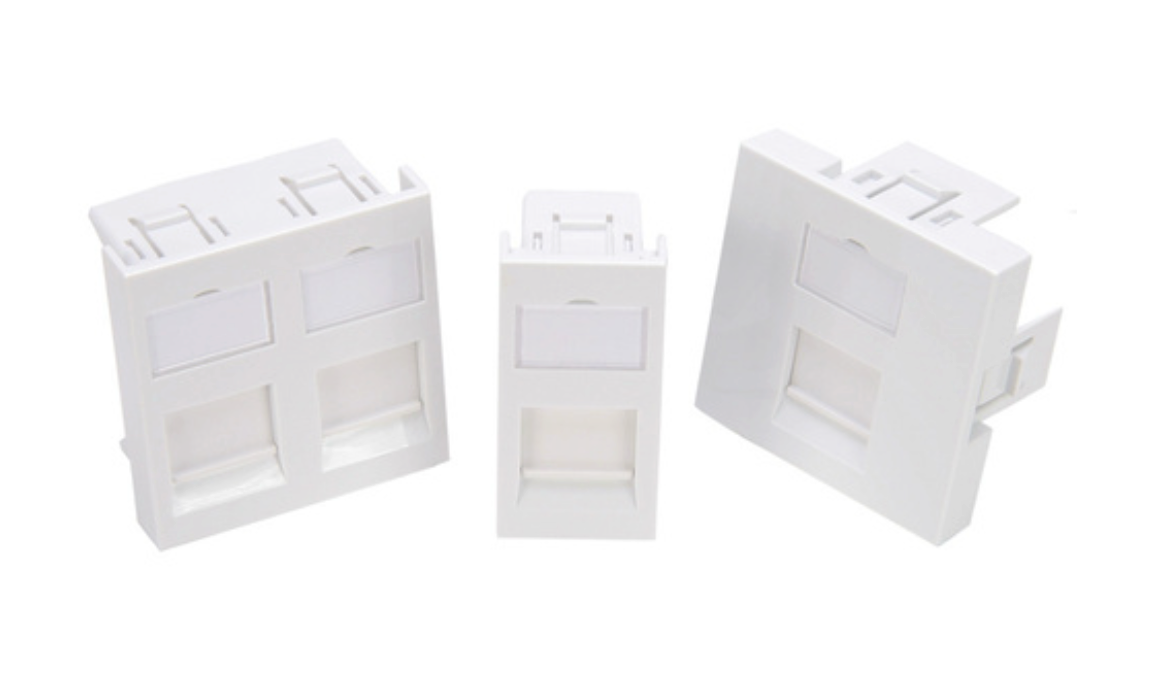

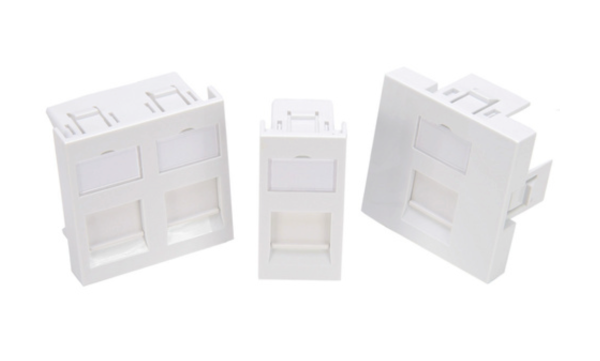

Flat French-style wallplate inserts that accept Leviton QuickPort UTP and shielded jacks, available in 1-port half-width and 1- and 2-port full-width designs with spring-loaded shutters and ID window kits.

Leviton French-Style Wallplate Inserts are designed to fit into 45mm x 45mm French-style openings and accept all QuickPort UTP and shielded jacks. Inserts include ID window kits for port designation and feature spring-loaded shutters to protect connectors from dust and debris when not in use. Available in 1-port half-width and 1- and 2-port full-width flat designs in white ABS plastic.

Design Considerations

Designed to fit in 45mm x 45mm French-style wallplate openings
Each insert accepts one or two QuickPort jacks

Physical Specifications

Materials: ABS plastic
Dimensions: See page two

Country of Origin

Taiwan

Warranty Information

For a copy of Leviton product warranties, visit .

Part Numbers

French-Style Wallplate Insert, 45mm x 22.5mm, 1 Port, flat, white — LI145-1W1
French-Style Wallplate Insert, 45mm x 45mm, 2 Ports, flat, white — LI145-2W1
LI145-2W2

SKU

LI145-1W1
LI145-2W1
LI145-2W2

Product Specification

Features

Compatible with all Leviton QuickPort UTP and shielded jacks
Includes ID window for port designation
Spring-loaded shutters protect jacks while not in use
Available in 1-port half-width and 1- and 2-port full-width flat designs
White ABS plastic construction
