Leviton – OPT‑X 1000i SDX Rack‑Mount Enclosures (1RU, 2RU, 3RU, 4RU) — 5RxUM‑xxx

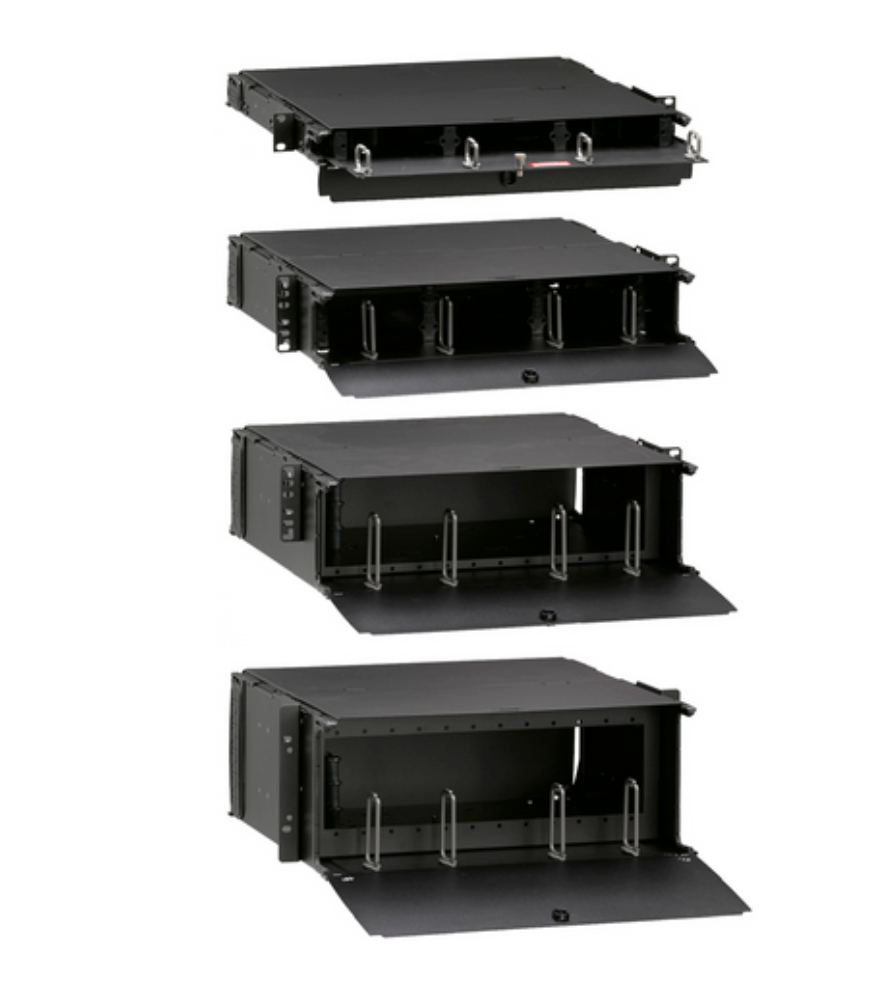

OPT‑X 1000i SDX Rack‑Mount Enclosures provide compact, high‑density fiber termination, splicing, and cross‑connect capability for data centers, equipment rooms, and telecommunications rooms. Available in 1RU, 2RU, 3RU and 4RU sizes, enclosures accept SC, LC, ST, and MTP adapters plus Plug‑n‑Play MTP cassettes and SDX adapter plates. Optional sliding trays (1RU/2RU) permit front and rear bulkhead access and ease field termination and splicing. Cable management includes stackable quarter/half/full rear rings, pivoting front saddles, removable grommet for pre‑terminated trunks, and accessory kits with ties, mounting screws, ID labels and spiral wrap. Enclosures mount in 19‑ or 23‑inch racks or cabinets and offer optional locking door hardware.

Product Specification

• Construction: 16‑gauge steel enclosure; powder‑coated black finish; plastic components made from self‑extinguishing ABS and polycarbonate rated UL 94V‑2; grommet material Santoprene®.
• Rack options: 1RU, 2RU, 3RU, 4RU; mountable in 19‑inch or 23‑inch racks (23″ 1RU bracket sold separately).
• Depth: 15‑inch chassis depth for high‑density termination and splicing.
• Capacity / Density:
  • 1RU: up to 72 fibers (up to 3 SDX adapter plates / 3 MTP cassettes; up to 3 splice trays).
  • 2RU: up to 144 fibers (up to 6 splice trays).
  • 3RU: up to 216 fibers (vertical adapter plate orientation up to 12 plates/modules; up to 12 splice trays).
  • 4RU: up to 288–360 fibers depending on orientation and plate count (up to 15 plates in highest‑density horizontal orientation; up to 12 splice trays).
• Sliding tray: Optional in 1RU and 2RU; glides for front/rear bulkhead access; removable for field terminations and splicing; retrofit trays allow HDX cassette or plate use (sliding tray does not accept splice trays).
• Adapter compatibility: Accepts SDX adapter plates, splice modules, MTP cassettes, and HDX MTP cassettes with conversion bracket.
• Cable management: Stackable rear cable management rings configurable as quarter/half/full rings; pivoting front saddles for patch cord routing; removable rubber grommet for pre‑terminated trunk install and dust minimization; capable of storing up to 3 m of 900 µm tight‑buffered fiber per adapter.
• Mounting and alignment: Protrudes 4.5″ from mounting ears to align with Leviton VERSI‑DUCT cable management.
• Environmental: Installation/operating temperature −10 °C to +60 °C.
• Compliance: Designed to meet ANSI/TIA‑568.3‑D performance requirements.
• Country of origin: Mexico.
• Packaging: Units sold empty (unloaded); include accessory kit (cable ties, mounting screws, ID label, spiral wrap for units with sliding tray).
• Optional: door lock feature available front, rear, or both (lock and key accessory).

SKU / Product Codes

• 5R1UM‑F03 — 1RU Enclosure, Empty (no sliding tray)
• 5R1UM‑S03 — 1RU Enclosure, Empty, with sliding tray
• 5R2UM‑F06 — 2RU Enclosure, Empty (no sliding tray)
• 5R2UM‑S06 — 2RU Enclosure, Empty, with sliding tray
• 5R3UM‑F09 — 3RU Enclosure, Empty
• 5R3UM‑F12 — 3RU Enclosure, Empty (alternate density)
• 5R4UM‑F12 — 4RU Enclosure, Empty (12‑plate capacity variant)
• 5R4UM‑F15 — 4RU Enclosure, Empty (15‑plate capacity variant)

Accessories (from datasheet)

• 5R2UR‑TRY — Retrofit Sliding Tray, 2U (for HDX cassettes/plates)
• 5R1UR‑TRY — Retrofit Sliding Tray, 1U (for HDX cassettes/plates)
• 5RCMP‑KIT — Universal Cable Clamp Kit, single cable grommet
• 5RCMP‑KT2 — Universal Cable Clamp Kit, multiple cable grommet
• 5RCMR‑KIT — 0 RU Patch Cord Managers (HDX to SDX)
• 5RCMT‑VFG — Adapter Bracket / 1/4 Round Ring Kit (bag of four)
• HDXAD‑ACC — 1RU enclosure 23″ rack/cabinet mounting bracket, lock and key
• 5R100‑14R* — accessory (note: not for retrofit sliding tray)
• 5R1RU‑023 — 23″ mounting bracket accessory
• 5L000‑KAL — Lock and key set (related accessory)
