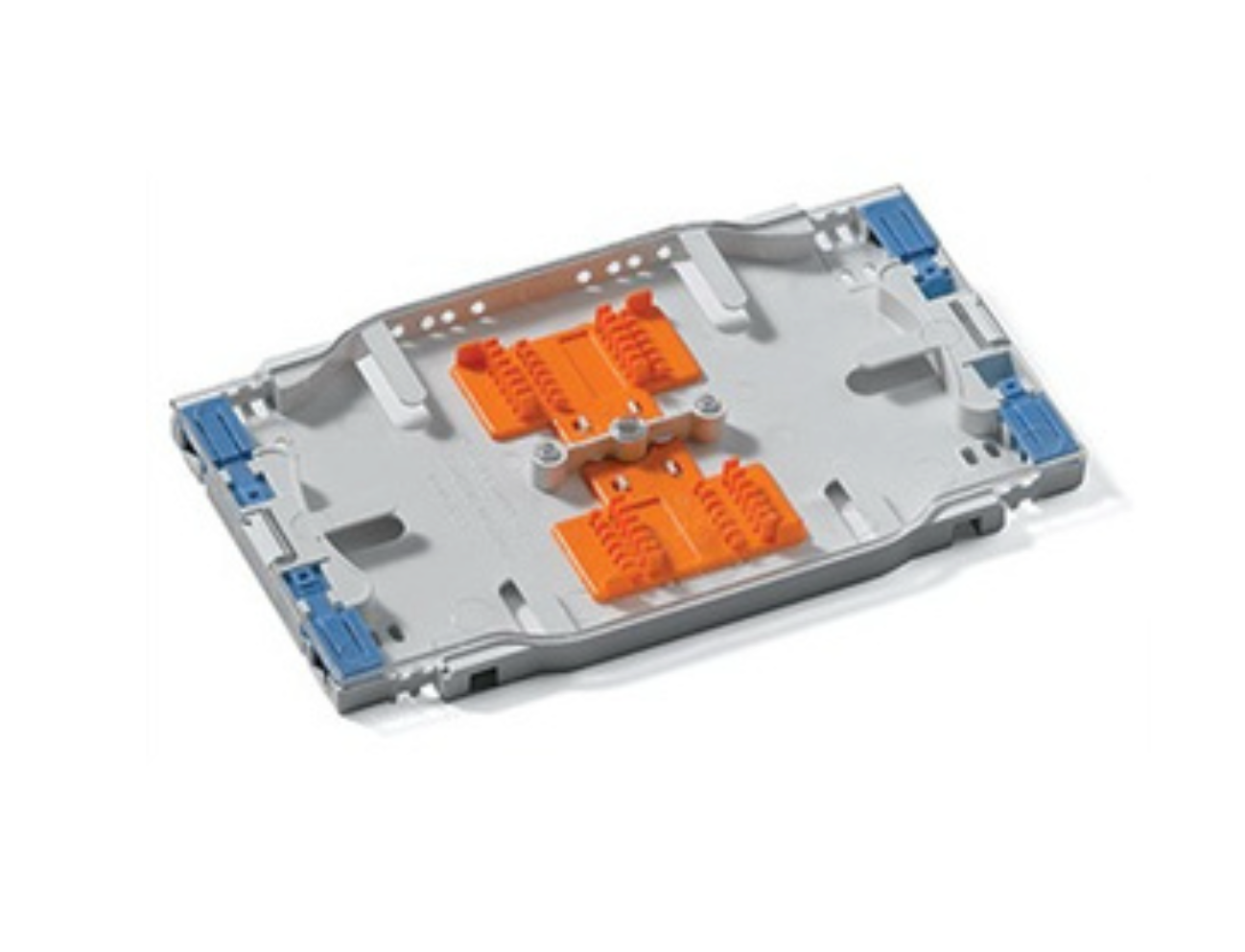

Leviton – T5PLS-24F Injection Molded High Density Fiber Splice Tray, Heat Shrink Style, 24 Fibers

Injection-molded high-density heat-shrink splice tray, accepts up to 24 fibers, clear cover for inspection.

SKU: 41084-BE-1 Categories: Leviton, Products Tags: 250µm, 900µm, clear cover, fiber accessories, fiber splice tray, heat-shrink splice tray, high-density, injection molded, Leviton, RoHS compliant, splice tray 24-fiber, T5PLS-24F Brand: Leviton

Leviton injection-molded plastic fiber splice trays provide protection and slack management of heat-shrink fusion spliced fibers (up to 24 fibers) inside a fiber enclosure. Available in 12-fiber mini and 24-fiber high-density versions, trays accommodate 250 µm or 900 µm fiber and feature a clear cover for viewing and inspection of tray contents. RoHS compliant. UPC code 078477394724. Country of origin: Australia.

Product Specification

UPC Code: 078477394724
Country of Origin: Australia
Capacity: Up to 24 fiber splicing
Type: Injection molded high-density fiber splice tray, heat-shrink style (accepts standard sleeves)
Fiber sizes accommodated: 250 µm; 900 µm
Cover: Clear cover for viewing/inspection
Included: Fiber splice sleeves included (mounting hardware sold separately)
Material/Construction: Injection-molded plastic

Product Specification

Product Specification (Feature and Benefit)

Features

Accepts up to 24 heat-shrink-style fusion spliced fibers.
Four ratchet-action clamps with foam rubber padding to minimize crush of loose tube or tight buffer fiber.
Clear cover for viewing or inspection without removal.
Multiple tie-down holes for securing incoming fiber.
Accommodates standard heat-shrink sleeves in 40 mm or 60 mm lengths.
Fiber splice sleeves included; mounting hardware sold separately.

Benefits

High-density capacity for compact enclosures and efficient splice management.
Clamps with padding protect fibers from damage while maintaining organization.
Clear cover speeds inspection and troubleshooting without disturbing splices.
Tie-down holes and included splice sleeves simplify secure, reliable installations.
