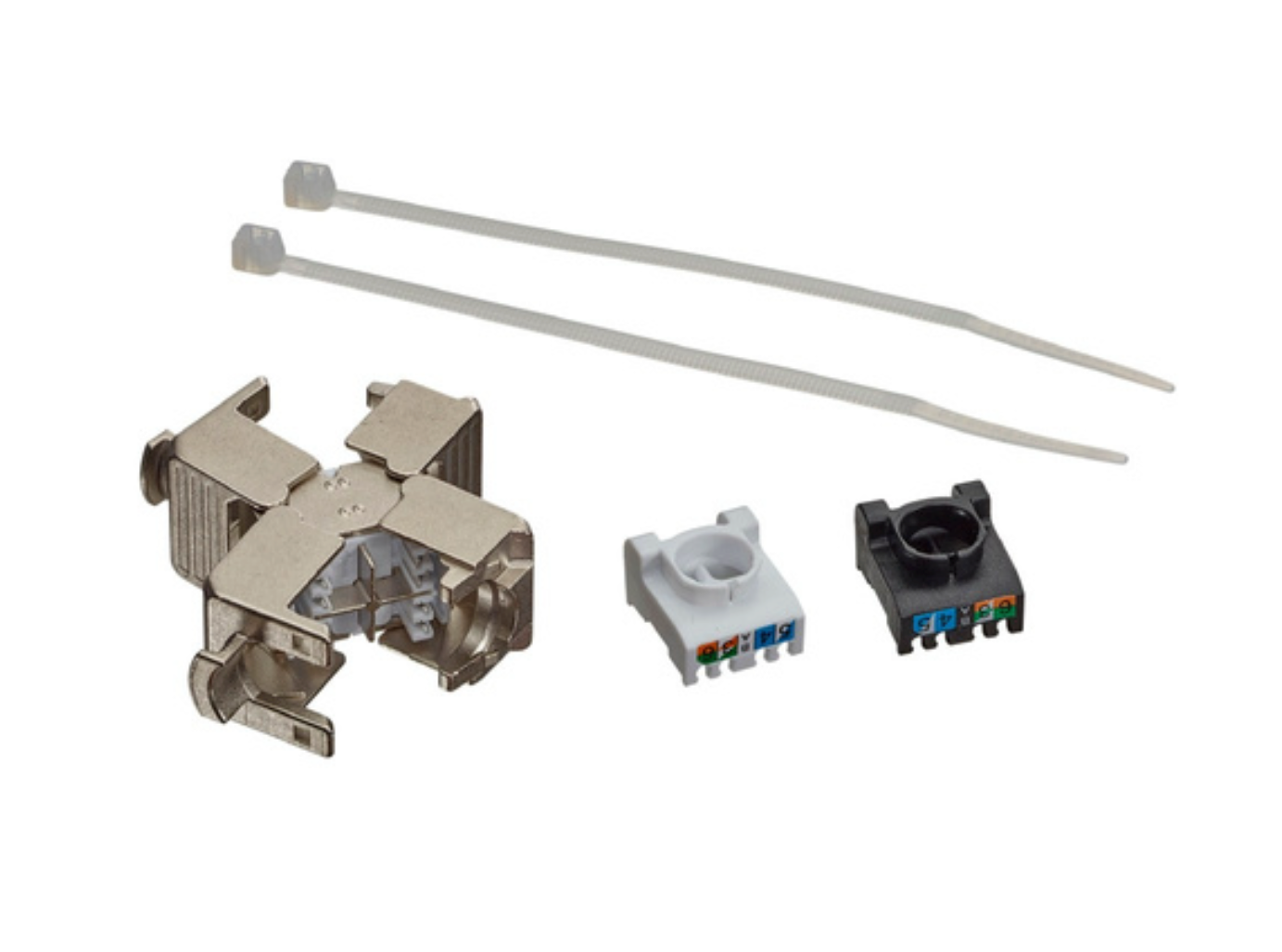

Leviton – SBCPI-00S — VXC Coupler (Cat 6A)

The Leviton VXC Coupler connects two pieces of Cat 6A cabling to enable installation and testing of a permanent link or Modular Plug Terminated Link (MPTL) while preserving flexibility to fine-tune final device placement. The coupler is Cat 6A component rated, works in UTP or shielded channels, requires no proprietary termination tools, and is NFPA-70 plenum rated for use in air-handling spaces.

Design Considerations

• Cable support required within 12 inches of installed coupler to reduce stress.
• Suitable for installation above a drop ceiling or other air-handling spaces.
• Can connect a horizontal cable to a single-ended patch cord to create an MPTL.
• Can be used as a single cable consolidation point.

Mechanical Specifications

• Materials: Zinc alloy.
• Dimensions: See datasheet page 2 (illustrated dimensions: 40.9 mm × 19.3 mm × 31.5 mm × 16.8 mm).
• Temp. (Storage): -40 °C to +70 °C (-40 °F to +158 °F).
• Temp. (Installation): -10 °C to +60 °C (+14 °F to +140 °F).
• Temp. (Operating): -10 °C to +60 °C (+14 °F to +140 °F).

Cable Compatibility

Patch Cord Compatibility

• Cat 6A CMR: 6AS10
• Cat 6A CMP: 6ASPO
• Cat 6A LSZH: AC6PCF

Standards and Regulations

• ANSI/TIA-568.2-D Cat6A
• ISO 11801 Class E
• ANSI/TIA-1096-A
• NFPA-70 CMP rated
• UL 2043 Plenum Certified
• IEEE 802.3 PoE Type 1–4 (100 W max)
• Cisco UPOE, UPOE+ (90 W max)
• Power over HDBaseT PoH (95 W max)

Country of Origin

• Taiwan

Warranty Information

For Leviton product warranties, go to Leviton.com/ns/warranty..

Part Number / SKU

• SBCPI-00S
